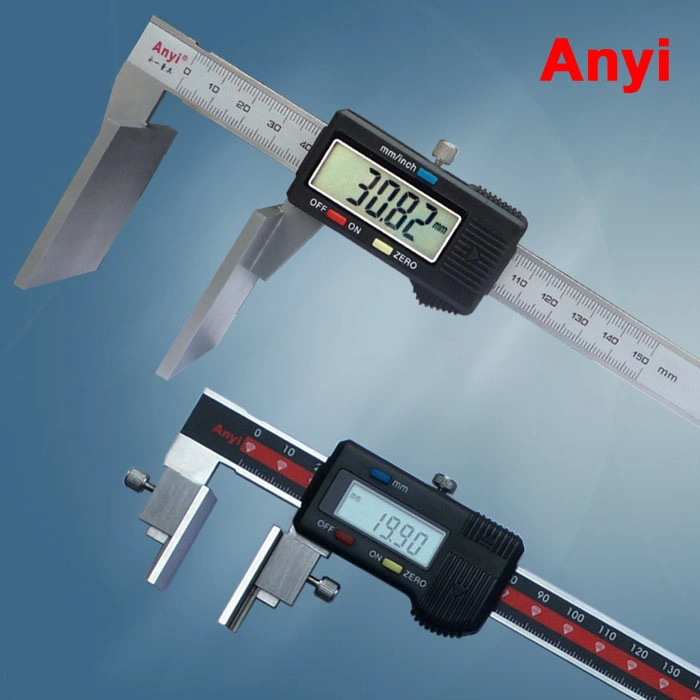

Digital Calipers with Broad Measuring Faces

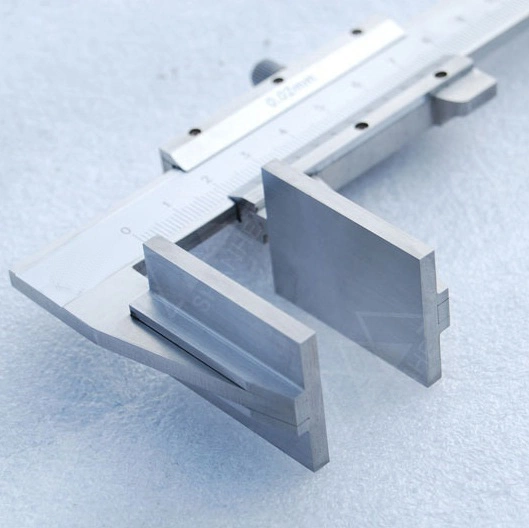

Measure the diameter of wire-rope or cable with broad measuring faces to improve convenience & accuracy.
Features
Specifications
| Measuring Range | Order No. | Resolution | Permissible Error | General Measuring Faces Dimensions |
| 0-150mm | 112-801 | 0.01mm | ±0.03mm | 20×30mm |
| 0-200mm | 112-802 | 0.01mm | ±0.04mm | 20×30mm |
| 0-300mm | 112-803 | 0.01mm | ±0.05mm | 20×30mm |
| 0-150mm | 112-801-1 | 0.01mm | ±0.03mm | 30×30mm |
| 0-200mm | 112-802-1 | 0.01mm | ±0.04mm | 30×30mm |
| 0-300mm | 112-803-1 | 0.01mm | ±0.05mm | 30×30mm |
| 0-150mm | 112-801-2 | 0.01mm | ±0.03mm | 30×40mm |
| 0-200mm | 112-802-2 | 0.01mm | ±0.04mm | 30×40mm |
| 0-300mm | 112-803-2 | 0.01mm | ±0.05mm | 30×40mm |
| 0-150mm | 112-801-3 | 0.01mm | ±0.04mm | 40×50mm |
| 0-200mm | 112-802-3 | 0.01mm | ±0.05mm | 40×50mm |
| 0-300mm | 112-803-3 | 0.01mm | ±0.06mm | 40×50mm |
| 0-150mm | 112-801-4 | 0.01mm | ±0.04mm | 50×50mm |
| 0-200mm | 112-802-4 | 0.01mm | ±0.05mm | 50×50mm |
| 0-300mm | 112-803-4 | 0.01mm | ±0.06mm | 50×50mm |
